Shell GTL Asphalt Additives

Title = Shell GTL Saraphalt Product Introduction Video Transcript

Duration = 03:08 Minutes

Description:

{Learn how Shell GTL Saraphalt improved asphalt performance with lower emissions and energy consumption}

[Text displays]

Shell GTL Saraphalt

Performance Additives for Asphalt Mixes

[Text displays]

Disclaimer:

The data shown is according to industry standard and Shell proprietary tests. They are compared to typical asphalt binders and based on standard test methods.

Actual effects and benefits may vary according to asphalt formulation, equipment type, conditions, and measurement uncertainty.

No guarantees or warranties provided.

[Background Music Plays]

Fast, upbeat music

[Animated sequence]

{Illustration showing process of laying tarmac on a new road}

[Animated sequence]

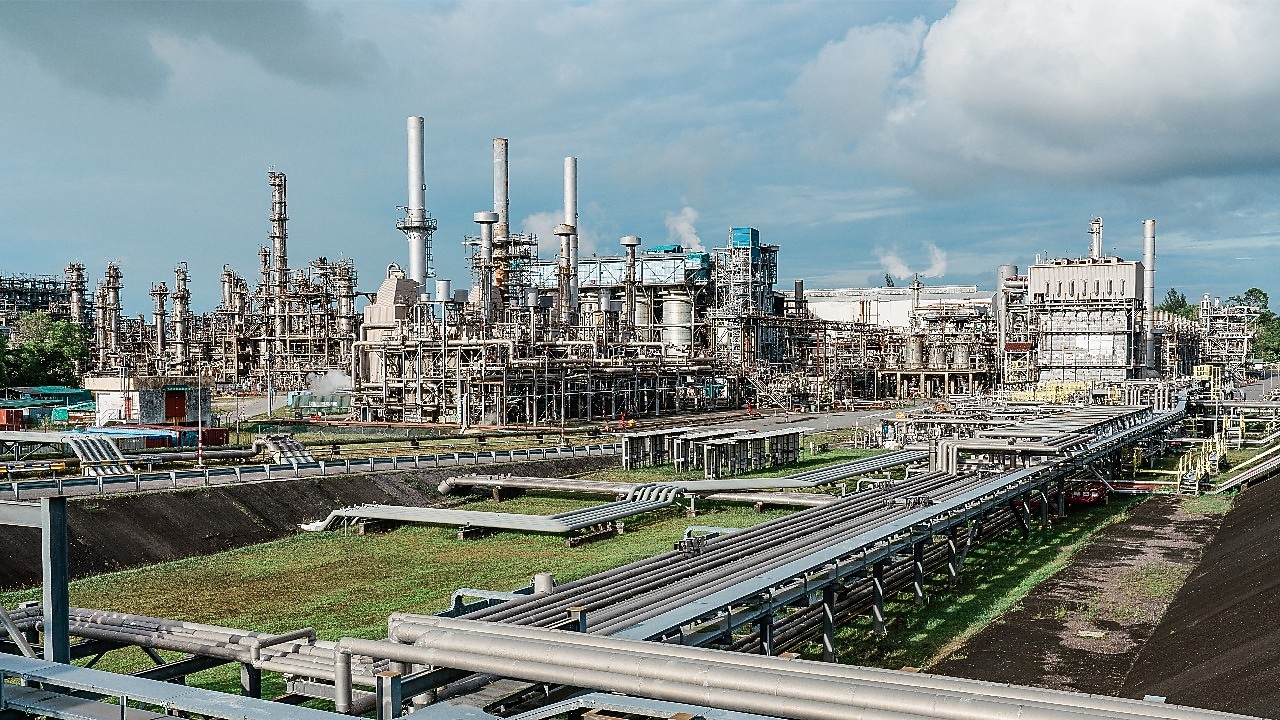

{Close up image outside the Shell MDS (Malaysia) Sendrian Berhad building. Image of GTL plant.}

[Text displays]

Shell pioneered the Fischer-Tropsch Gas-To-Liquids (GTL) technology in its first commercial GTL plant of its kind in Bintulu, Malaysia, achieving commercial GTL production in 1993.

[Text displays]

What is the process behind it?

[Animated sequence]

{Animated process of the three stages}

[Text displays]

Stage 1: Gasification

Methane (Natural Gas)

Oxygen (From Air)

Hydrogen – Syngas

Carbon Monoxide

Stage 2: Synthesis

Fischer-Tropsch Syn Crude + Water

Stage 3: Hydro-cracking & Separation

Hydro cracking

Separation

[Animated sequence]

{Image of workers smoothing tarmac}

[Text displays]

Shell GTL Saraphalt

A versatile additive polymerized from natural gas via Fischer-Tropsch synthesis, suitable for high quality warm mix asphalt applications.

[Animated sequence]

{Image of road roller smoothing tarmac. Four icons; Road roller, Road, Hammer and NTPEP tested.}

[Text displays]

Shell GTL Saraphalt

Better workability

Improved stability

Higher durability

Tested for application on highway and bridge construction

[Animated sequence]

{Birds eye view of windy road going through a forest. Two icons; Low CO2 and worker}

[Text displays]

Shell GTL Saraphalt

Lower CO2 emissions and energy consumption

Improved working conditions with extended paving season

[Animated sequence]

{Birds eye view of motorway surrounded by a forest}

[Text displays]

Industry comparison

Results have shown that with the addition of 2% Shell GTL Saraphalt to base asphalt binders, improvements from standard bitumen can be seen in certain criteria and are comparable with alternative additives.

[Animated sequence]

{Image of digger loading stones into the back of a truck. Graph showing reduction in temperate}

[Text displays]

Improved pumpability, mixability and workability of asphalts

Reduces viscosity of asphalt binders especially at 135°C, the typical production or construction temperature.

[Animated sequence]

{Close up image or a motorway. Two graphs sowing Softening Point and Penetration Rolling Thin Film Oven Testing, RTFOT (dmm)}

[Text displays]

Higher resistance to permanent deformation

Lower penetration and improved Softening Point by more than 30%.

Softening Point (°C)

Standard Bitumen = 48.5

Standard Bitumen with Shell GTL Saraphalt = 64.5

Standard Bitumen with alternative additives = 61.5

Penetration Rolling Thin Film Oven Testing, RTFOT (dmm)

Standard Bitumen = 64

Standard Bitumen with Shell GTL Saraphalt = 43

Standard Bitumen with alternative additives = 48

[Animated sequence]

{Close up image of Road roller. Two graphs; High Temperature Performance Grade (PG), Unaged Material (°C)}

[Text displays]

Increased maximum pavement temperature and rutting resistance

Broadening Performance Grade (PG) range by increasing useful temperature interval of asphalt up to +13°C additional of maximum pavement temperature.

High Temperature Performance Grade (PG), Unaged Material (°C)

Standard Bitumen = 59.8

Standard Bitumen with Shell GTL Saraphalt = 73.3

Standard Bitumen with alternative additives = 70.8

Rutting Depth (mm)

Standard Bitumen = 5.84

Standard Bitumen with Shell GTL Saraphalt = 2.81

Standard Bitumen with alternative additives = 4.33

[Animated sequence]

{Image of puddle of fuel on pavement. Graph showing Fuel Resistance (wt%)}

[Text displays]

Better fuel resistance

No significant weight changes in Fuel Resistance test, improving asphalt resistance against damage on fuel contact.

Fuel Resistance (wt%)

Standard Bitumen = 1.37

Standard Bitumen with Shell GTL Saraphalt = 0.00

Standard Bitumen with alternative additives = 2.00

[Animated sequence]

{Up close image of crack in the road. Graph of G-R aging index}

[Text displays]

Higher resistance to oxidation aging

Supported by the G-R (Glover-Rowe) parameter that considers both binder stiffness and embrittlement, indicating cracking potential at intermediate temperature,

G-R aging index

Standard Bitumen with Shell GTL Saraphalt = 47.2

Standard Bitumen with alternative additives = 262

[Animated sequence]

{Image of straight road surrounded by the forest}

[Text displays]

Improved fatigue resistance

Improved base asphalt binder’s fatigue resistance at both 2.5% and 5.0% strain levels.

Pressure Again Vessel (PAV) Long-term Aging

Standard Bitumen with Shell GTL Saraphalt = 99,143 & 10,026

Standard Bitumen with alternative additives = 48,284 & 5,428

[Animated sequence]

{Close up of red vehicle driving through a puddle}

[Text displays]

Enhances tensile strength ration (TSR)

Exceeds minimum requirements of ASTMD4867, showing better strength and adherence at different cracking or fatigue temperatures due to higher resistance and less susceptible to moisture.

Tensile Strength Ratio, TSR (%)

Standard Bitumen = 94

Standard Bitumen with Shell GTL Saraphalt = 97

Standard Bitumen with alternative additives = 84

[Animated sequence]

{Illustration of workers finishing laying the new road}

[Text displays]

Shell GTL Saraphalt
