Shell GTL Drilling Base Fluids
Shell GTL Saraline Drilling Base Fluids are non-toxic, as demonstrated by OECD 201, 203, 222 testing. Derived from natural gas, these multi-application synthetic drilling base fluids are custom-made to meet the drilling demands and challenges of the future, offering the lowest environmental hazard as reflected by OCNS Group E rating. Designed for safe and reliable performance, they are suitable for a wide range of conditions, from scorching deserts to subarctic temperatures, and from deepwater operations to high-temperature wells.
Improved Drilling Performance
Higher Drilling Efficiency
With lower equivalent circulating density (ECD), faster drilling rate, and increased hole cleaning with its low viscosity.
Better Mud Control
While drilling with less time spent on mud conditioning with its relatively consistent rheology profile over a wide range of working temperatures.
Improved safety
To workers and operations with its high flash point.
Enhanced Elastomer Performance
Which reduces failure leading to lower non-productive time (NPT) with its high aniline point.
Outstanding Product Characteristics & Health Management
Approved for Offshore Discharge
Rated “E” (Lowest Environmental Hazard) under OCNS4 (Offshore Chemical Notification Scheme). Approved for offshore discharge in Malaysia, Australia, New Zealand, Thailand, Indonesia, Brunei, India, Nigeria, Dubai, and most recently, in China due to its extremely favorable environmental profile.
Safe Aquatic Ecotoxicity
Linear structure results in low toxicity to fish, invertebrates, and algae in water column and sediment toxicity tests. Does not bioaccumulate in marine organisms.
High Biodegradability
Readily biodegradable in both marine water (OECD 306 test) and fresh water (OECD 301F test). Significant onshore bioremediation performance evaluated for land farming applications based on methodology from Westbrook et al (2020).
Product Range

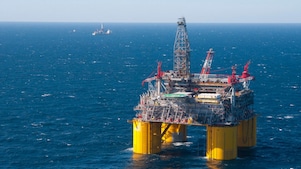

Shell GTL Saraline 185
Premium-quality drilling fluid suitable for use in wide range of drilling applications.

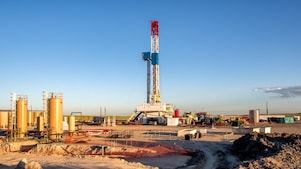

Shell GTL Sarapar 147
Premium-quality drilling fluid suitable for use in shallow water applications and high-temperature high-pressure wells.

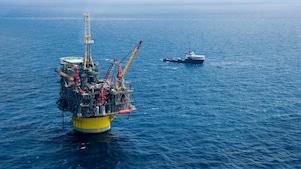

Shell GTL Saraline 200
Premium-quality drilling fluid suitable for use in onshore and offshore drilling applications.

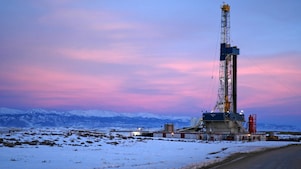

Shell GTL Saraline LV-B
Premium-quality drilling base fluid with superior physical properties and benign HSE profile making it ideal for deep water, extended reach and cold climate drilling applications.
Download the Brochures
We're Refreshing Our Content
Our brochure is currently being updated and will be available again shortly.
For product information or technical support, please contact us
Technical Information
Technical Information
| Property | Unit | Shell GTL Saraline 185V | Shell GTL Sarapar 147 | Shell GTL Saraline 200 | Shell GTL Saraline LV-B |
|---|---|---|---|---|---|
| Density 15C | kg/m³ | 780 | 775 | <800 | 767 |
| Flash Point | Deg C | 90 | 121 | >95 | 77 |
| KV40 | mm2/s | 2.70 | 2.68 | <3.50 | 1.78 |
| Pour Point | Deg C | -30 | 9 | <0 | -39 |
| Aniline Point | Deg C | 94 | 94 | >75 | 88 |
